Mercedes-Benz C-Class Owners Manual: Removing and installing hub caps

Requirements:

  • The vehicle is prepared for a wheel change.

Plastic hub cap

  • To remove: turn the center cover of the hub cap counter-clockwise and remove the hub cap.
  • To install: make sure that the center cover of the hub cap is turned counter-clockwise.
  • Position the hub cap and turn the center cover clockwise until the hub cap engages physically and audibly.

Aluminum hub cap

Changing a wheel

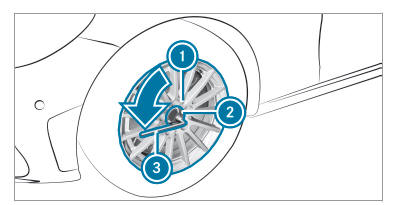

  • To remove: position socket 2 on hub cap 1.

The socket can be found in the tire-change tool kit.

  • Position wheel wrench 3 on socket 2.
  • Using wheel wrench 3, turn hub cap 1 counter-clockwise and remove it.
  • To install: position hub cap 1 and turn until it is completely flush with the wheel.
  • Position socket 2 on hub cap 1.
  • Attach wheel wrench 3 to socket 2 and tighten the hub cap clockwise.

    Specified tightening torque: 18 lb-ft (25 Nm).
