Mercedes-Benz C-Class Owners Manual: Adjusting the front seat electrically

Mercedes-Benz C-Class Owners Manual / Seats and stowing / Seats / Adjusting the front seat electrically

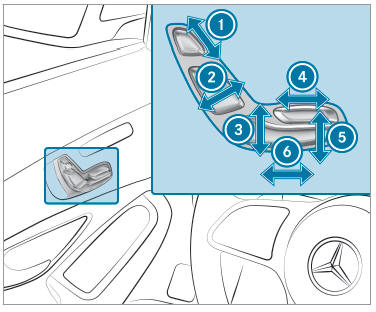

Seats

  1. Head restraint height
  2. Seat backrest inclination
  3. Seat height
  4. Seat cushion length
  5. Seat cushion inclination
  6. Seat fore-and-aft position
  • Save the settings with the memory function.

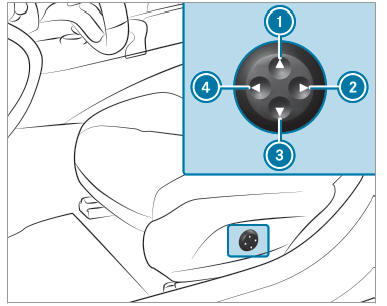

Adjusting the 4-way lumbar support

Seats

  1. To raise
  2. To soften
  3. To lower
  4. To harden
  • Using buttons 1 to 4, adjust the contour of the backrest individually to suit your back.
    Adjusting the front seat mechanically and electrically
