Mercedes-Benz C-Class Owners Manual: Steering wheel

Adjusting the steering wheel manually

WARNING Risk of injury from adjusting the vehicle settings while the vehicle is in motion
You could lose control of the vehicle in the following situations:
  • if you adjust the driver's seat, the head restraint, the steering wheel or the mirror while the vehicle is in motion
  • if you fasten your seat belt while the vehicle is in motion
  • Before starting the engine: adjust the driver's seat, the head restraint, the steering wheel or the mirror and fasten your seat belt.



WARNING Risk of entrapment for children when adjusting the steering wheel
Children could injure themselves if they adjust the steering wheel.
  • Never leave children unattended in the vehicle.
  • When leaving the vehicle, always take the SmartKey with you and lock the vehicle.

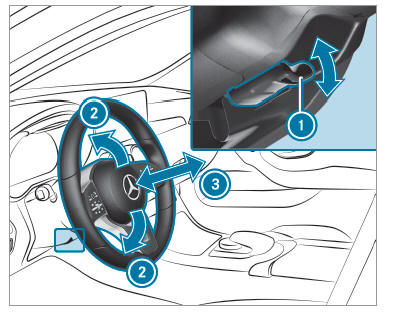

Steering wheel

  • Push release lever 1 down as far as it will go.

    The steering column is unlocked.

  • Adjust height 2 and distance 3 to the steering wheel.
  • Push release lever 1 up as far as it will go.

    The steering column is locked.

  • Check and make sure that the steering column is locked by moving the steering wheel.

Adjusting the steering wheel electrically

The steering wheel can be adjusted when the power supply is switched off.

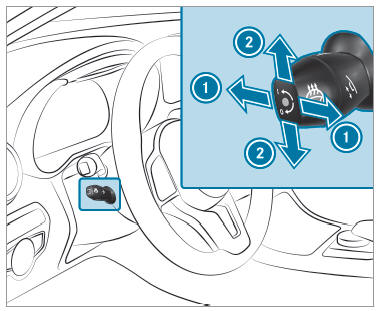

Steering wheel

  1. Adjusts the distance to the steering wheel
  2. Adjusts the height
  • Save the settings with the memory function.

Switching the steering wheel heater on or off

Requirements:

  • The ignition is switched on.

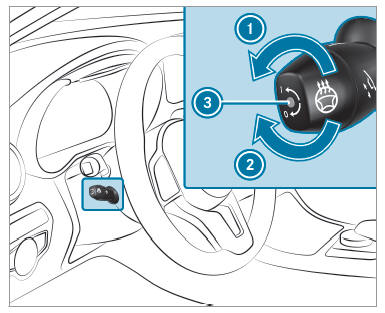

Steering wheel

  • Turn the lever in the direction of arrow 1 or 2.

    If indicator lamp 3 lights up, the steering wheel heater is switched on.

When you switch the ignition off, the steering wheel heater switches off.

    Switching the seat heating on/off

    Easy entry and exit feature
