Mercedes-Benz C-Class (W205) 2015 - 2021 Owners Manual: Opening and closing the side windows

Mercedes-Benz C-Class (W205) 2015 - 2021 Owners Manual / Opening and closing / Side windows / Opening and closing the side windows

WARNING Risk of entrapment when opening a side window
When opening a side window, parts of the body could be drawn in or become trapped between the side window and window frame.
  • When opening, make sure that nobody is touching the side window.
  • If someone is trapped, release the button immediately or pull it in order to close the side window again.



WARNING Risk of becoming trapped when closing a side window
When closing a side window, body parts could be trapped in the closing area in the process.
  • When closing, make sure that no body parts are in the closing area.
  • If someone is trapped, release the button immediately or press the button in order to reopen the side window.



WARNING Risk of becoming trapped when children operate the side windows
Children could become trapped if they operate the side windows, particularly when unattended.
  • Activate the child safety lock for the rear side windows.
  • When leaving the vehicle, always take the SmartKey with you and lock the vehicle.
  • Never leave children unattended in the vehicle.

Requirements:

  • The power supply or the ignition is switched on.

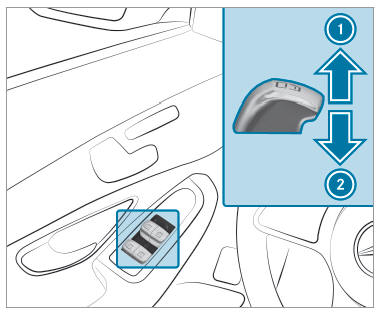

Side windows

  1. Closes
  2. Opens

The buttons on the driver's door take precedence.

  • To start automatic operation: press the button beyond the point of resistance or pull and release it.
  • To interrupt automatic operation: press or pull the button again.

When the vehicle is switched off, the side windows can continue being operated.

The function is available for around five minutes or until a front door is opened.

Automatic reversing function of the side windows

If an object blocks a side window during the closing process, the side window opens again automatically. The automatic reversing function is only an aid and is not a substitute for your attentiveness.

  • When closing, make sure that no body parts are in the closing area.
WARNING Risk of becoming trapped despite there being reversing protection on the side window
The reversing function does not react:
  • To soft, light and thin objects, e.g. fingers
  • During resetting

This means that the reverse function cannot prevent someone from becoming trapped in these situations.

  • When closing, make sure that no body parts are in the closing area.
  • If someone becomes trapped, press the button to open the side window again.
    Side windows

    Convenience opening (ventilating the vehicle before starting a journey)
