Mercedes-Benz C-Class (W205) 2015 - 2021 Owners Manual: Garage door opener

Programming buttons for the garage door opener

DANGER Risk of fatal injuries due to exhaust gases
Combustion engines emit poisonous exhaust gases such as carbon monoxide. Inhaling these exhaust gases is hazardous to health and can lead to poisoning.
  • Never leave the engine running in an enclosed space without sufficient ventilation.



WARNING Risk of injury when opening or closing a door with the garage door opener
When you operate or program the door with the integrated garage door opener, people in the range of movement of the door may become trapped or struck by the door.
  • When using the integrated garage door opener, always make sure that nobody is within the range of movement of the door.

Only operate the following doors using the garage door opener:

  • Doors with a safety stop and reversing feature.
  • Doors which conform to the current U.S. safety standards.

Requirements:

  • The vehicle has been parked outside the garage or outside the range of movement of the door.
  • The engine is switched off.
  • The ignition is switched on.

The garage door opener function is always available when the ignition is switched on.

Parking

  • Check if the transmitter frequency of the remote control has the frequency range of 280 to 868 MHz.

    Radio equipment approval number:

    • NZLMUAHL5 (USA)
    • 4112A-MUAHL5 (Canada)

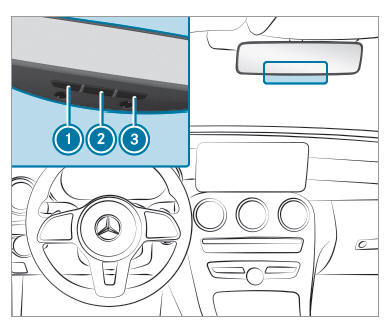

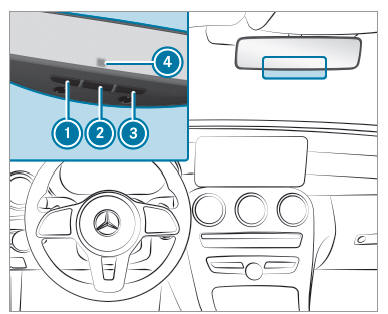

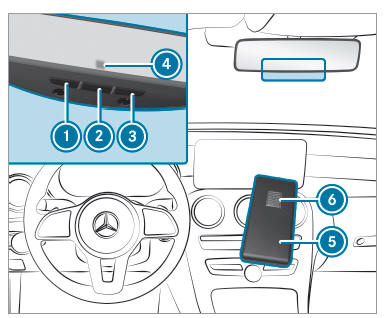

  • Press and hold button 1, 2 or 3 that you wish to program.

    Indicator lamp 4 flashes yellow.

It can take up to 20 seconds before the indicator lamp flashes yellow.

  • Release the previously pressed button.

    Indicator lamp 4 continues to flash yellow.

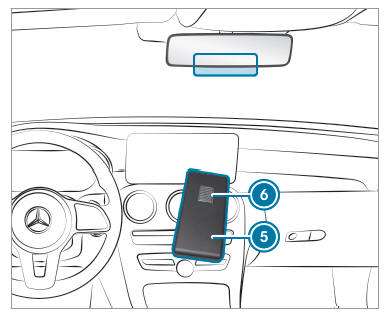

  • Point remote control 5 from a distance of 1 in (1 cm) to 3 in (8 cm) towards buttons 1, 2 or 3.
  • Press and hold button 6 of remote control 5 until one of the following signals appears:
    • Indicator lamp 4 lights up green continuously.

      Programming is complete.

    • Indicator lamp 4 flashes green. Programming was successful. Additionally, synchronization of the rolling code with the door system must also be carried out.
  • If indicator lamp 4 does not light up or flash green: repeat the procedure.
  • Release all of the buttons.

The remote control for the door drive is not included in the scope of delivery of the garage door opener.

Synchronizing the rolling code

Requirements:

  • The door system uses a rolling code.
  • The vehicle must be within range of the garage door or door drive.
  • The vehicle as well as persons and objects, are located outside the range of movement of the door.

Parking

  • Press the programming button on the door drive unit.

    Initiate the next step within approximately 30 seconds.

  • Press previously programmed button 1, 2 or 3 repeatedly until the door closes.

    When the door closes, programming is completed.

Please also read the operating instructions for the door drive.

Troubleshooting when programming the remote control

Parking

  • Check if the transmitter frequency of remote control 5 is supported.
  • Replace the batteries in remote control 5.
  • Hold remote control 5 at various angles at a distance between 1 in (1 cm) to 3 in (8 cm) in front of the inside rearview mirror. You should test every position for at least 25 seconds before trying another position.
  • Hold remote control 5 at the same angles at various distances in front of the inside rearview mirror. You should test every position for at least 25 seconds before trying another position.
  • Note that some remote controls transmit only for a limited period, press button 6 on remote control 5 again before transmission ends.
  • Align the antenna line of the door opener unit with the remote control.

Support and additional information on programming:

  • On the toll free HomeLink Hotline on 1-800-355-3515.
  • On the Internet at http:// www.homelink.com/mercedes.

Opening/closing a garage door

Requirements:

  • The corresponding button is programmed to operate the door.

Parking

  • Press and hold buttons 1, 2 or 3 until the door opens or closes.
  • If indicator lamp 4 flashes yellow after approximately 20 seconds: press and hold the previously pressed button again until the door opens or closes.

Clearing the garage door opener memory

Parking

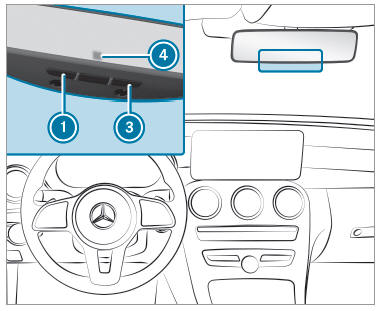

  • Press and hold buttons 1 and 3.

    Indicator lamp 4 lights up yellow.

  • If indicator lamp 4 flashes green: release buttons 1 and 3.

    The entire memory has been deleted.

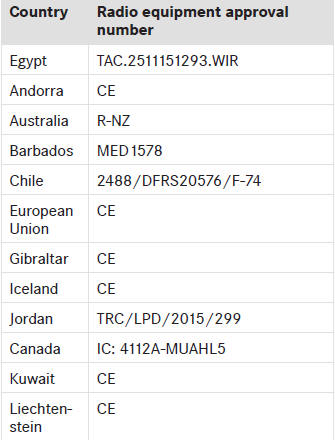

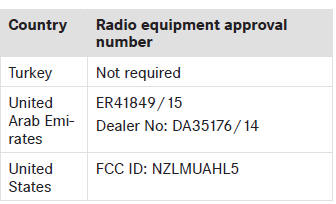

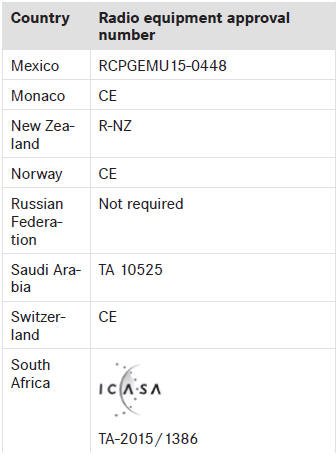

Radio equipment approval numbers for the garage door opener

Radio equipment approval numbers

Brazil

Este equipamento opera em caráter secundário, isto é, não tem direito à proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.

Para maiores informações acessar www.anatel.gov.br

Radio equipment approval numbers

Radio equipment approval numbers

Radio equipment approval numbers

Radio equipment approval numbers

Further information on the declaration of conformity for wireless vehicle components.
