Mercedes-Benz C-Class (W205) 2015 - 2021 Owners Manual: Reversing camera

Function of the rear view camera

Driving and driving safety systems

If you have activated the function in the multimedia system, the image from rear view camera 1 is shown in the multimedia system display when reverse gear is selected. Dynamic guide lines show the path the vehicle will take with the steering wheel in its current position. This helps you to orient yourself and to avoid obstacles when backing up.

The rear view camera is only an aid. It is not a substitute for your attention to the surroundings.

The responsibility for safe maneuvering and parking remains with you. Make sure that there are no persons, animals or objects etc., in the maneuvering area while maneuvering and parking.

You can select from the following views:

  • Normal view
  • Wide-angle view

The area behind the vehicle is displayed as a mirror image, as in the inside rearview mirror.

Vehicles without Active Parking Assist

The following camera views are available in the multimedia system:

Driving and driving safety systems

Normal view

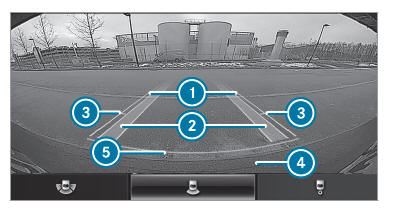

  1. Yellow guide line, vehicle width (driven surface) depending on the current steering wheel angle (dynamic)
  2. Yellow lane marking the course the tires will take at the current steering wheel angle (dynamic)
  3. Yellow guide line at a distance of approximately 3.3 ft (1.0 m) from the rear area
  4. Bumper
  5. Red guide line at a distance of approximately 1.0 in (0.3 m) from the rear area

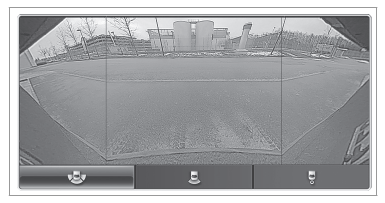

Wide-angle view

Vehicles with Active Parking Assist

The following camera views are available in the multimedia system:

Driving and driving safety systems

Normal view

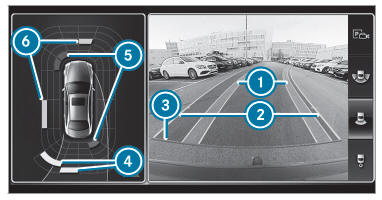

  1. Yellow lane marking the course the tires will take at the current steering wheel angle (dynamic)
  2. Yellow guide line, vehicle width (driven surface) depending on the current steering wheel angle (dynamic)
  3. Red guide line at a distance of approximately 12 in (0.3 m) from the rear area
  4. Yellow warning display of Parking Assist PARKTRONIC: obstacles are at a distance of between approximately 2.0 ft (0.6 m) and 3.3 ft (1.0 m)
  5. Red warning display of Parking Assist PARKTRONIC: obstacles are very close (approximately 1.0 ft (0.3 m) or less)
  6. Orange warning display of Parking Assist PARKTRONIC: obstacles are a medium distance away (between approximately 1.0 ft (0.3 m) and 2.0 ft (0.6 m) )

If the entire system fails, the inner segments of the warning display are shown in red. The indicator lamp on the PARKTRONIC button lights up and the symbol appears in the multifunction display.

If the system fails at the rear, the rear segments are shown in red when backing up and are hidden when driving forwards.

When Active Parking Assist is active, the lanes are displayed in green.

If Parking Assist PARKTRONIC is deactivated, the warning display fades out.

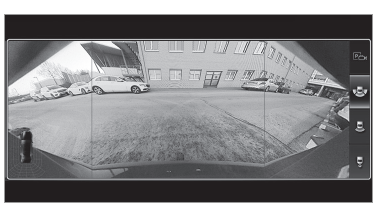

Wide-angle view

System limitations

The rear view camera will not function or will only partially function in the following situations:

  • The trunk lid is open.
  • There is heavy rain, snow or fog.
  • The ambient light conditions are poor, e.g. at night.

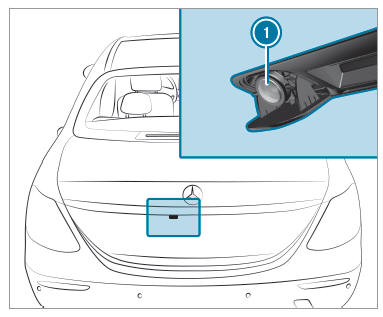

  • The camera lens is obstructed, dirty or fogged up. Observe the notes on cleaning the rear view camera.
  • Cameras, or vehicle components in which the cameras are installed, are damaged. In this event, have the cameras, their positions and their setting checked at a qualified specialist workshop.

The field of vision and other functions of the rear view camera may be restricted due to additional accessories on the rear of the vehicle (e.g. license plate bracket or bicycle rack).

The display contrast may be impaired due to incident sunlight or other light sources. In this case, pay particular attention.

Have the display repaired or replaced if, for example, pixel errors considerably restrict its use.

    Parking Assist PARKTRONIC
