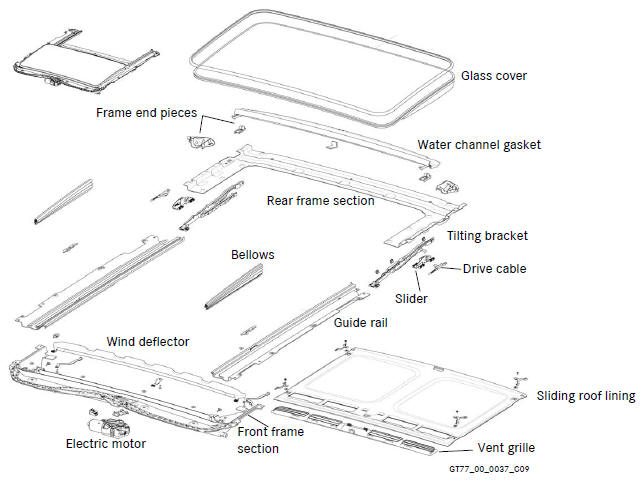

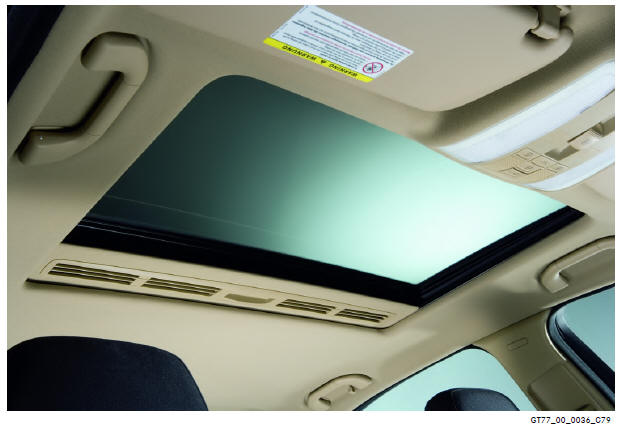

Glass tilting/sliding roof (SA)

Mercedes Benz C-Class. Roof Systems

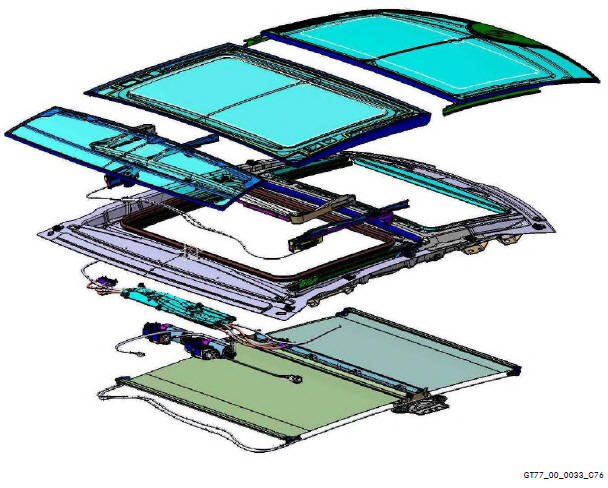

Glass tilting/sliding roof (SA)

Supplied by Webasto
New frame system resulting from change in material (corrosion protection)
Plastic water drains (corrosion protection)
Anti-pinch protection as in past

Information for Service

Normalization via overhead control switch:

Open roof in slide position.
Press and hold overhead control switch in tilt position until roof is in tilt position.

Mercedes Benz C-Class. Roof Systems

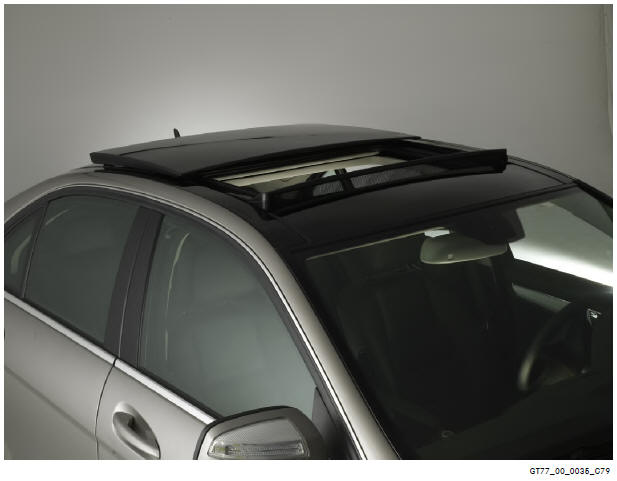

Top sliding roof (SA)

New roof design
New supplier (Inalfa)
With anti-pinch protection for the first time
With convenience closing and opening for the first time
Non-networked overhead control panel

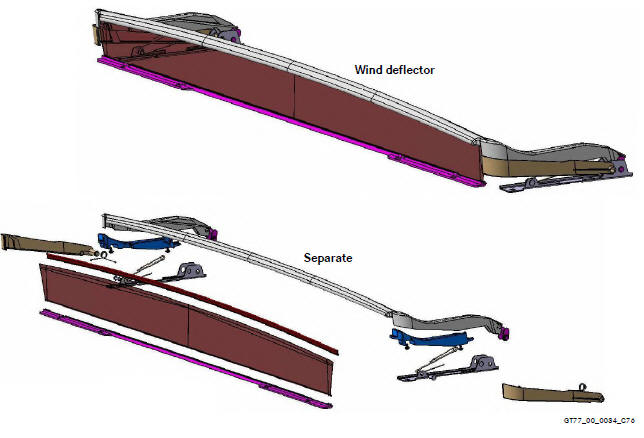

Newly developed wind deflector
Normalization via STAR DIAGNOSIS

Mercedes Benz C-Class. Roof Systems

Top sliding roof (SA)

Mercedes Benz C-Class. Roof Systems

Restraint Systems / Crash-Active Emergency Lighting

Emergency Operations
