Mercedes Benz C-Class (W204) Training Manual: Door Concept

Mercedes Benz C-Class (W204) Training Manual / Body and Safety / Door Concept

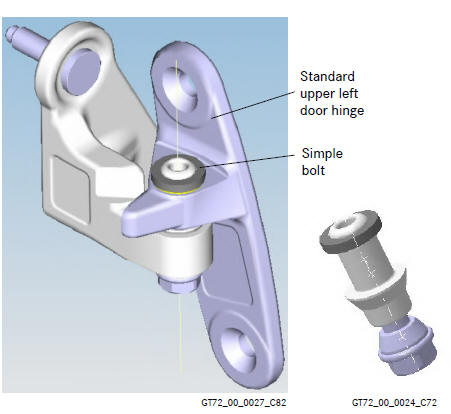

Standard hinge halves

Note: In the event of complaints can only be adjusted from inside after removing various panels.

Mercedes Benz C-Class. Door Concept

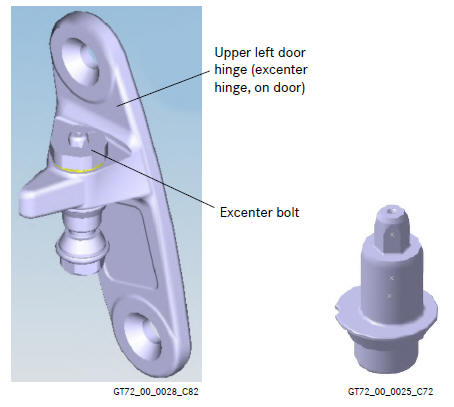

Replacement part hinge halves

Is also installed when a door is replaced
Permits the doors to be adjusted in the X-direction even from the outside by means of excenter bolts.

Mercedes Benz C-Class. Door Concept

Improvement in corrosion protection compared to model series W 203
