Mercedes Benz C-Class (W204) Training Manual: ARAMIS sensor location

Mercedes Benz C-Class. ARAMIS Restraint Systems

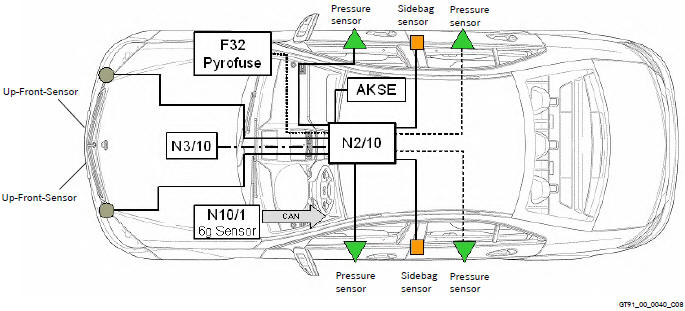

Legend

Optionally installed sensors (for rear sidebags)

Analog crash signal

Ignition circuit for pyrofuse

Sensors installed as standard

F32 Prefuse box
N2/10 ARAMIS
N3/10 Engine control unit
N10/1 Front SAM

    ARAMIS Restraint Systems

    Front Emergency Tensioning Retractors
