Mercedes-Benz C-Class (W205) 2015 - 2021 Owners Manual: At a glance

Cockpit

Cockpit

  1. Steering wheel paddle shifters
  2. Combination switch
  3. DIRECT SELECT lever
  4. Multimedia system display
  5. Glove box
  6. Start/stop button
  7. Climate control systems
  8. Control elements for the multimedia system
  9. Hazard warning lights
  10. PASSENGER AIRBAG indicator lamps
  11. Stowage compartment
  12. Control panel for the multimedia system
  13. Control knob for volume and switches the sound on/off
  14. Switches the multimedia system on/off
  15. Rear window roller sunblind
  16. ECO start/stop function
  17. Active Parking Assist
  18. Sets the vehicle level
  19. DYNAMIC SELECT switch
  20. Control panel for the multimedia system (steering wheel)
  21. Adjusts the steering wheel
  22. Control panel for the on-board computer
    Operates cruise control
    Operates Active Distance Assist DISTRONIC
  23. Diagnostics connection
  24. Opens the hood
  25. Electric parking brake
  26. Light switch
  27. Control panel for:
    Active Steering Assist
    Active Lane Keeping Assist
    Parking Assist PARKTRONIC
    Head-up Display

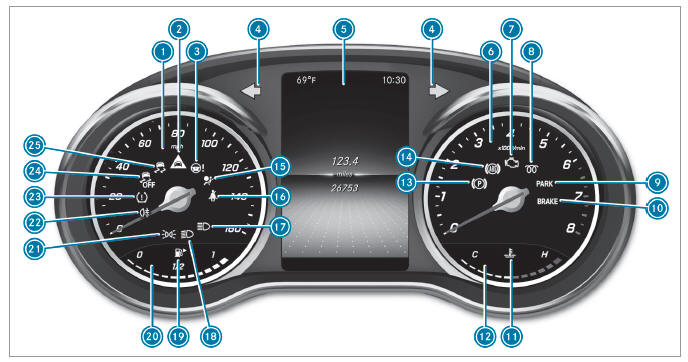

Warning and indicator lamps

Warning and indicator lamps

  1. Speedometer
  2. Distance warning
  3. Power-assisted steering malfunction
  4. Indicators
  5. Multifunction display
  6. Tachometer
  7. Check Engine
  8. Diesel engine: preglow
  9. Electric parking brake applied (red)
    USA only
    Canada only
  10. Brakes (red)
    USA only
    Canada only
  11. Coolant too hot/cold
  12. Coolant temperature gauge
  13. Electric parking brake (yellow)
  14. ABS malfunction
  15. Restraint system
  16. Seat belt not fastened
  17. High beam
  18. Low beam
  19. Fuel reserve with fuel filler flap location indicator
  20. Fuel level display
  21. Parking lights
  22. Rear fog light
  23. Tire pressure monitoring system
  24. ESP OFF
  25. ESP

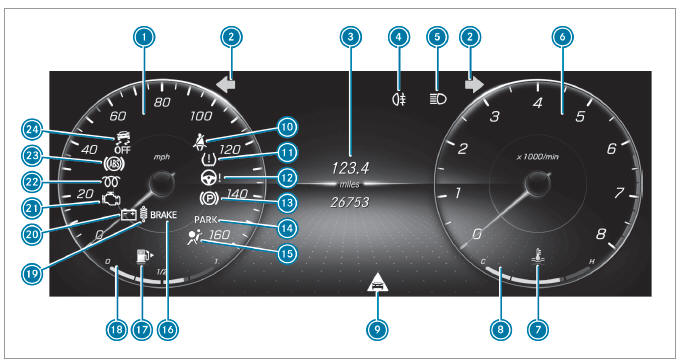

Warning and indicator lamps

  1. Speedometer
  2. Indicators
  3. Multifunction display
  4. Rear fog light
  5. High beam
    Low beam
    Parking lights
  6. Tachometer
  7. Coolant too hot/cold
  8. Coolant temperature gauge
  9. Distance warning
  10. Seat belt not fastened
  11. Tire pressure monitoring system
  12. Power-assisted steering malfunction
  13. Electric parking brake (yellow)
  14. Electric parking brake applied (red)
    USA only
    Canada only
  15. Restraint system
  16. Brakes (red)
    USA only
    Canada only
  17. Fuel reserve with fuel filler flap location indicator
  18. Fuel level display
  19. Suspension malfunction
  20. Electrical malfunction
  21. Check Engine
  22. Diesel engine: preglow
  23. ABS malfunction
  24. ESP OFF
    ESP

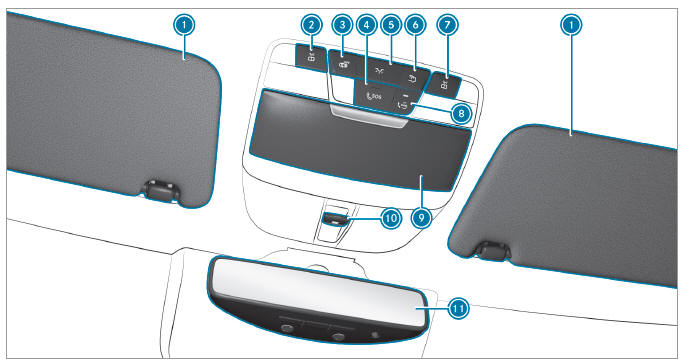

Overhead control panel

Overhead control panel

  1. Sun visors
  2. Switches the left-hand reading lamp on/off
  3. Switches the interior lighting control on/off
  4. SOS emergency call system (Mercedes-Benz emergency call system)
  5. Switches the front interior lighting on/off
  6. Switches the rear interior lighting on/off
  7. Switches the right-hand reading lamp on/off
  8. Service call button (Mercedes me connect)
  9. Eyeglasses compartment
  10. Opens/closes the panoramic sliding sunroof
    Opens/closes the roller sunblinds
  11. Inside rearview mirror

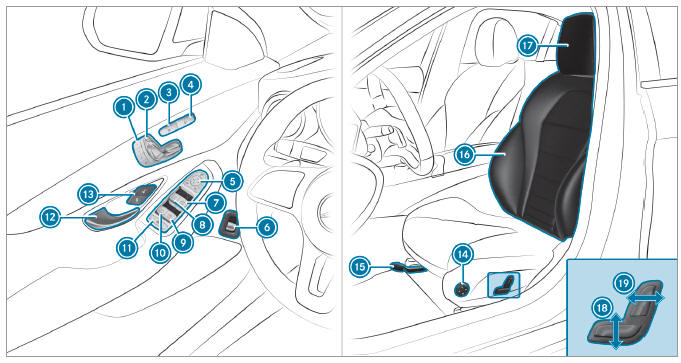

Door control panel and seat adjustment

Door control panel and seat adjustment

  1. Operates the memory function
  2. Adjusts the seats electrically
  3. Switches the seat heater on/off
  4. Switches the seat ventilation on/off
  5. Operates the outside mirrors
  6. Opens/closes the trunk lid
  7. Opens/closes the right side window
  8. Opens/closes the left side window
  9. Opens/closes the rear right side window
  10. Opens/closes the rear left side window
  11. Child safety lock for the rear side windows
  12. Opens the door
  13. Locks/unlocks the vehicle
  14. Adjusts the 4-way lumbar support
  15. Sets the seat fore-and-aft adjustment
  16. Seat adjustment using the multimedia system
  17. Adjusts the head restraints
  18. Adjusts the seat height
  19. Adjusts the seat backrest inclination

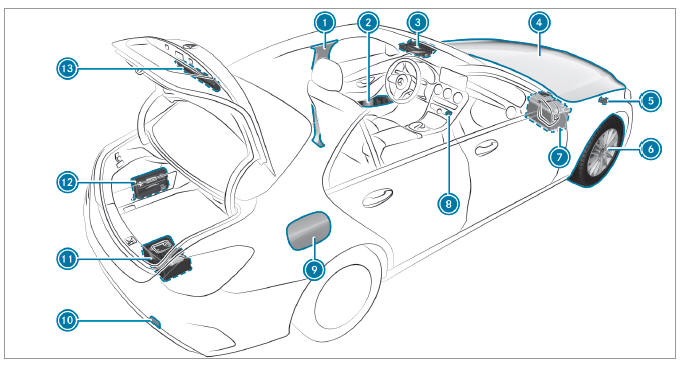

Emergencies and breakdowns

Emergencies and breakdowns

  1. QR code for accessing the rescue card
  2. Safety vests
  3. Buttons for the SOS emergency call system and breakdown assistance
  4. To check and top up operating fluids
  5. To tow-start and tow away
  6. Flat tire
  7. Starting assistance
  8. Hazard warning lights
  9. Fuel filler flap with instruction labels for tire pressure, fuel type and QR code for accessing the rescue card
  10. To tow-start and tow away
  11. TIREFIT kit
  12. First-aid kit
  13. Warning triangle
