Mercedes-Benz C-Class (W205) 2015 - 2021 Owners Manual: Opening and closing the fuse box in the engine compartment

Mercedes-Benz C-Class (W205) 2015 - 2021 Owners Manual / Breakdown assistance / Electrical fuses / Opening and closing the fuse box in the engine compartment

Requirements:

  • A dry cloth and a screwdriver are available.

Observe the notes on electrical fuses

Opens

WARNING Risk of injury from using the windshield wipers while the engine hood is open
When the engine hood is open and the windshield wipers are set in motion, you can be trapped by the wiper linkage.
  • Always switch off the windshield wipers and ignition before opening the engine hood.

Electrical fuses

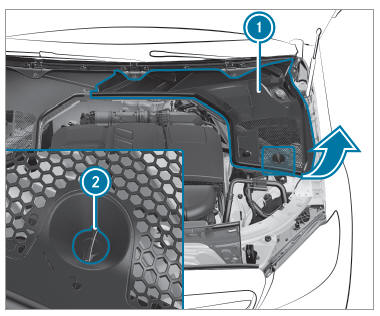

  • Turn clip 2 on cover 1 a quarter-turn counter-clockwise.
  • Fold cover 1 up in the direction of the arrow.

Electrical fuses

  • Remove any existing moisture from the fuse box using a dry cloth.

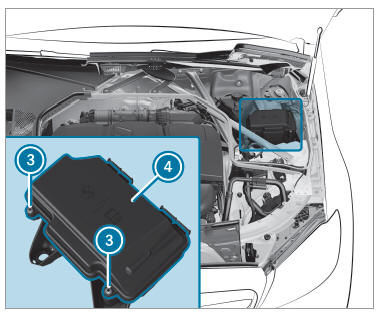

  • Loosen screws 3 and remove fuse box lid 4 from the top.

Closing

  • Check whether the seal is positioned correctly in lid 4.
  • Insert lid 4 into the bracket at the rear of the fuse box.
  • Fold down lid 4 of the fuse box and tighten screws 3.
  • Fold down cover 1.
  • Turn clip 2 on cover 1 one quarter-turn to the right.
  • Close the hood.

Opening and closing the fuse box in the cockpit

The fuse box is on the side of the dashboard under a cover.

  • Contact an authorized Mercedes-Benz Center for further information.

Opening and closing the fuse box in the front passenger footwell

Observe the notes on electrical fuses.

Electrical fuses

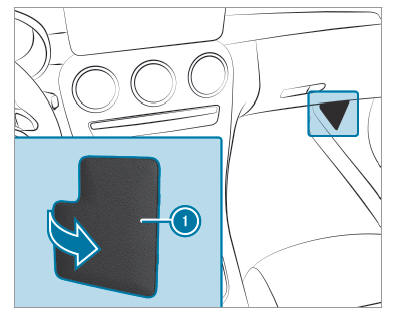

  • Open cover 1 in the direction of the arrow and remove it.

Opening and closing the fuse box in the trunk

Observe the notes on electrical fuses.

Electrical fuses

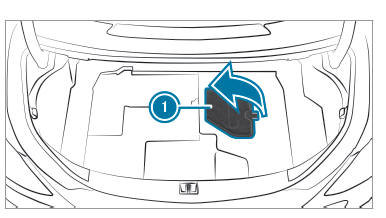

  • Fold cover 1 up in the direction of the arrow.

The fuse allocation chart is in a recess on the side of the fuse box.

    Notes on electrical fuses
