Mercedes Benz C-Class (W204) 2007 - 2014 Training Manual: Audio/Navigation Systems

NTG4 (new telematics generation 4) device overview

AUDIO 20

Mercedes Benz C-Class. Audio/Navigation Systems

AUDIO 50

Mercedes Benz C-Class. Audio/Navigation Systems



Mercedes Benz C-Class. Audio/Navigation Systems

  1. Display
  2. Head unit
  3. Audio/COMAND controller

Mercedes Benz C-Class. Audio/Navigation Systems

COMAND APS

Mercedes Benz C-Class. Audio/Navigation Systems

Mercedes Benz C-Class. Audio/Navigation Systems

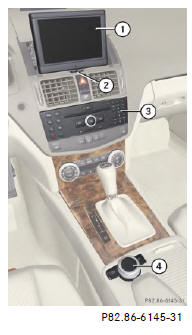

  1. Display
  2. Display control switch
  3. Head unit
  4. Audio/COMAND controller

Mercedes Benz C-Class. Audio/Navigation Systems

Function overview

- FM/AM radio with FM diversity
- CD drive (MP3/WMA)
- Basic Bluetooth telephony
- 5" color TFT display

- FM/AM radio with FM diversity
- DVD drive (DVD audio, MP3/WMA, navigation data)
- Basic Bluetooth telephony
- 5" color TFT display
- MOST connection (for the sound option)

- FM/AM radio with FM diversity
- DVD drive (DVD audio, MP3/WMA/AAC, navigation data)
- Basic Bluetooth telephony
- HDD map navigation
- Voice control/Text to Speech
- PCMCIA card slot
- Music Register (size 4 GB)
- 7" color TFT display (swiveling)
- MOST connection (for the sound option)

+ 6-disk CD changer
+ MOST connection (for the sound option)

+ 6-disk DVD changer (DVD audio)
+ Voice control/Text to Speech

Navigation DVD must be inserted into slot 6 for navigation.

+ 6-disk DVD changer (DVD audio/video)

NTG4 device features

  • Similar design to NTG3
  • The telematics CAN connects the 3 main components:
    • Head unit - central display - audio controller
    • Video signal from the HU to the central display
  • The MOST fiber optic cable is not absolutely essential
  • The following special equipment can be optionally connected to the MOST fiber optic cable:
    • Surround Sound system (harman/kardon)
    • Satellite Radio (SDAR for USA)
    • Digital Audio Broadcast (DAB for Great Britain)

Mercedes Benz C-Class. Audio/Navigation Systems

Legend

  1. Telematics CAN
  2. Interior CAN
  3. Video signal

A40/3 Audio/COMAND
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
N40/3 Sound system amplifier control unit (SA)
N87/3 Digital audio broadcast (DAB) control unit - (GB)
N87/5 Satellite digital audio radio (SDAR) control unit - USA

    Telematics

    Overview of the New COMAND Functions
